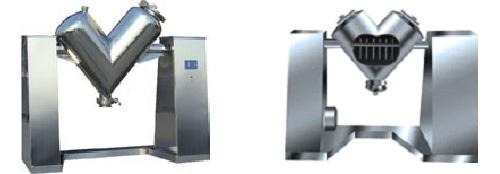

VHJ系列混合機
概述 Description
本機適用于制藥、化工、食品等行業兩種以上干粉狀、顆粒狀物料的混和。該機混和筒結構獨特，混和效率高、無死角，采用不銹鋼材料制作，內外壁拋光處理，外形美觀，混和均勻，適用面較寬，并能根據用戶的要求配套強制攪拌器，以適合較細的粉粒、塊狀、含有一定水份的物料混合之用。
This machine is suitable for mixing two or more dry and powder or granule raw materials from pharmaceutical industry, chemical industry, foodstuff industry and so on.The structure of this machine is unique. Its mixing efficiency is high and no dead corner. It is made of stainless steel. Its inner and outer wall is processed through polishing. Its appearance is beauty.Its mixing is uniform. Its scope of application is wide. The forced stirrer can also be equipped in order to meet the requirements of raw materials that contain fine powder, cake and certain moisture as request.
-----------------------------------------------------------------------------------------------------------------

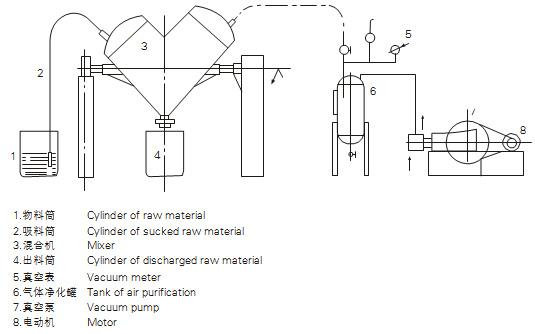

結構示意圖 Schematic of structure
-----------------------------------------------------------------------------------------------------------------
技術參數 Technical parameters
| 型號規格Model and specification | VHJ-0.18 | VHJ-0.3 | VHJ-0.5 | VHJ-1.0 | VHJ-1.5 | VHJ-2.0 | VHJ-2.5 | VHJ-3.0 | VHJ-4.0 | VHJ-5.0 | VHJ-6 |
| 生產能力Productive capacity (kg/time) | 90 | 150 | 250 | 500 | 750 | 1000 | 1250 | 1500 | 2000 | 2500 | 3000 |
| 配用真空泵型號Model of vacuum pump | W2 | W2 | W2 或SK-1.5 | W3 或SK-3 | W3 或SK-3 | W3 或SK-3 | W3 或SK-6 | W4 或SK-6 | W4 或SK-9 | W4 或SK-9 | W4 或SK-12 |
| 進料時間Time of raw material fed in (min) | 3-5 | 3-5 | 4-6 | 6-9 | 6-10 | 8-13 | 8-15 | 8-12 | 10-15 | 15-20 | 18-25 |
| 混合時間Mixing time (min) | 4-8 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 8-12 | 8-12 | 8-12 | 8-12 |
| 全容積Total volume (m3) | 0.18 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 | 5.0 | 6.0 |
| 攪拌速度Stirring speed (r/min) | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 10 | 10 | 10 | 10 |
| 電機功率Power of motor (kw) | 1.1 | 1.1 | 2.2 | 4 | 4 | 5 | 7.5 | 7.5 | 11 | 15 | 18.5 |
| 回轉高度Rotating height (mm) | 1580 | 1760 | 2400 | 2840 | 3010 | 3240 | 3680 | 3700 | 4350 | 4800 | 5300 |
| 重量Weight (kg) | 280 | 320 | 550 | 950 | 1020 | 1600 | 2040 | 2300 | 2800 | 3250 | 3850 |
